Description
These automatic vehicle fixation systems are equipped with hydraulic wheel safety system helping prevent accidents and injuries when loading / unloading vehicles with a ramp.
During these processes, there is a risk that the vehicle may unintentionally slide off the ramp due to the impact of the forklift. Another ever-present danger is leaving the car too early (due to misunderstandings, incorrect instructions or lack of communication with the driver). For both risks, these automatic vehicle fixation systems are the ideal solution. While the vehicle approaches the ramp, these systems acts as a parking guide for the vehicle approaching the ramp in reverse. This reduces the possibility of damage to the vehicle, the dock, the dock leveler, or the building. Once the vehicle is in the correct position in front of the ramp, the hydraulic wheel stabilization system starts working via a button on the control box located inside the building. The rearmost wheel of the vehicle is automatically detected and fixed by the laser sensor. The outstanding feature of these systems is the constant force coming from the hydraulic system, which ensures a reliable and safe fastening function during loading operations.

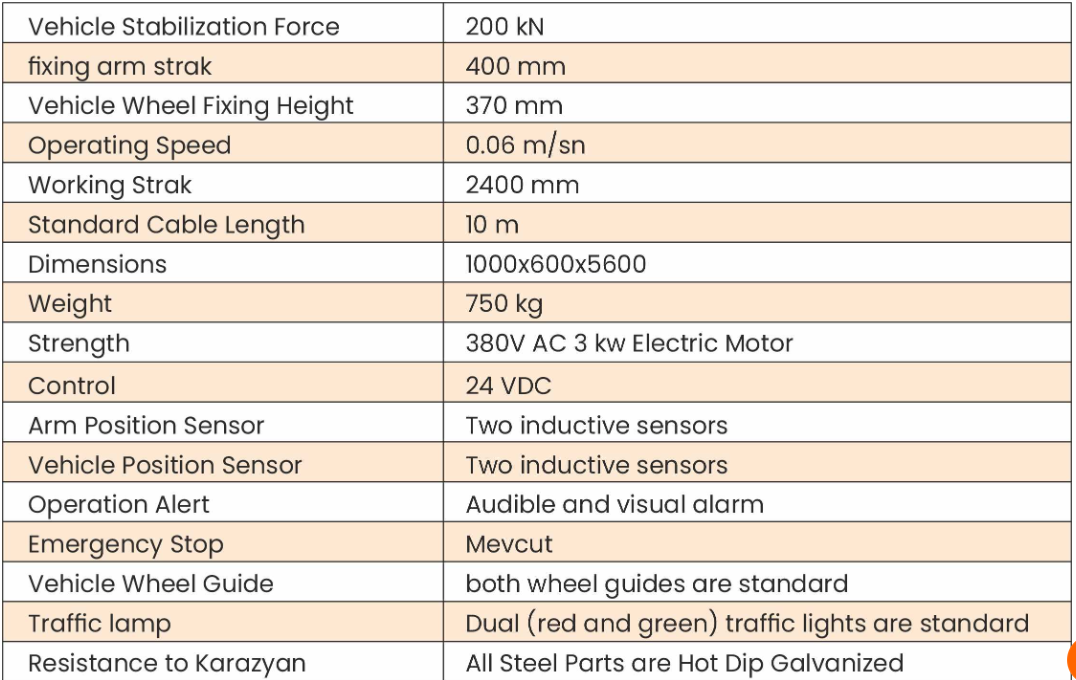

Technical characteristics:
Required vehicle dimensions:
– Vehicle wheel diameter must be between 700 mm and 1200 mm.
– The distance between the wheels to be locked must be at least 250 mm
