Description

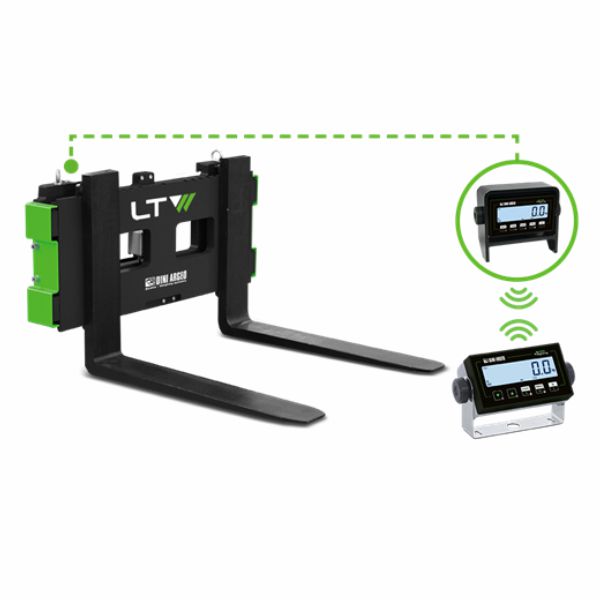

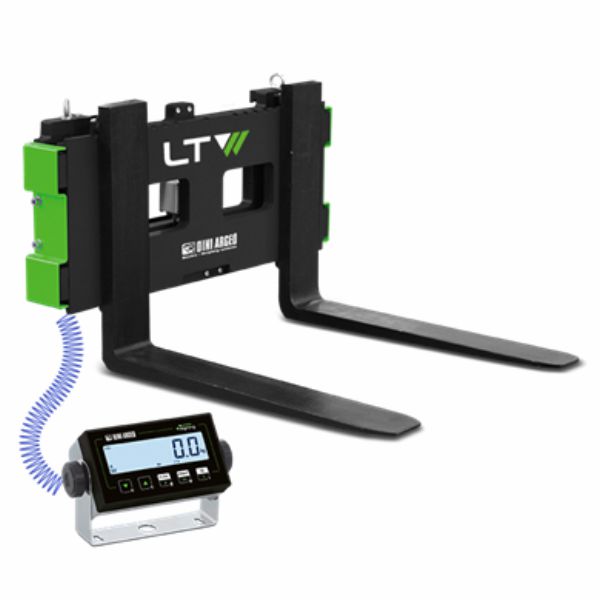

The fork holder plate with integrated weighing system, designed for mounting on a forklift, is equipped with a DIN15173 fixing rail – FEM class II, transforming a standard forklift into a mobile scale. It is fitted with a compact weight indicator mounted in the forklift cabin, versatile and easy to use. Also available in an approved version for legal-for-trade use.
Features:
- Plate dimensions: 910 x 407 x 110 mm
- Weight: 184 kg
- Maximum fork length: 1100 mm
- Maximum center of gravity displacement: 55 mm
- Load-bearing plate structure made of thick steel
- Hermetic junction box
- Standard extensible cable included (length 5 m)
- ABS weight indicator with backlit 25 mm LCD display, featuring 6 high-contrast digits and icons for displaying active functions
- Supplied with fixing bracket for mounting in the cabin
- Functional waterproof keypad with 5 keys
- ABS enclosure with IP68 protection rating, easy to clean and resistant to harsh and corrosive environments
- Visual and audible overload indication
- Auto-off (energy saving): 5 minutes, adjustable or deactivable
- Power supply directly from the forklift (optional power supply available)
- Optional printer complete with fixing bracket for mounting in the cabin
