Description

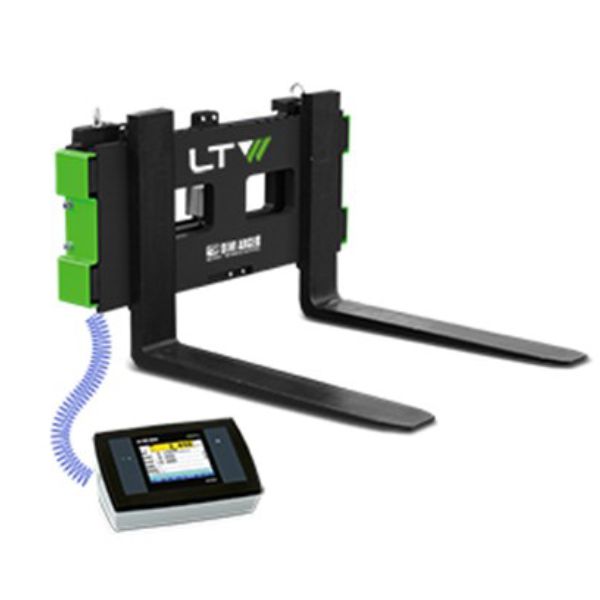

Fork holder plate with integrated weighing system, for mounting on a forklift, equipped with a DIN15173 fixing rail – FEM class II, transforming a standard forklift into a mobile scale. Fitted with a touchscreen weight indicator mounted in the forklift cabin for advanced applications. Also available in an approved version for legal-for-trade use.
Features:
- Plate dimensions: 910 x 407 x 110 mm
- Weight: 184 kg
- Maximum fork length: 1100 mm
- Maximum center of gravity displacement: 55 mm
- Load-bearing plate structure made of thick steel
- Stainless steel load cells, sensitivity 2 mV/V
- Maximum supply voltage: 15 Vdc
- Hermetic junction box
- Standard extensible cable (length 5 m)
- Backlit touchscreen display, complete with mounting bracket for cabin installation
- Fully customizable displays
- ABS IP65 enclosure, easy to clean and resistant to harsh and corrosive environments
- Visual and acoustic overload indication
- Power supply directly from the forklift (optional power supply available)
- Optional printer complete with mounting bracket for cabin installation
- Backlit 25 mm LCD display with 6 high-contrast digits and icons for indicating active functions
- ABS enclosure with IP68 protection, easy to clean and resistant in harsh and corrosive environments

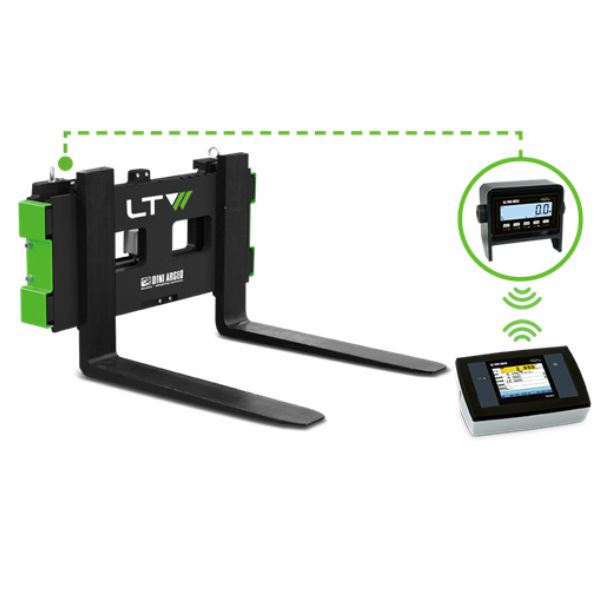

- Communication with the cabin weight indicator via Bluetooth
- Power supply through an internal rechargeable battery, with 60h working autonomy and external battery charger provided as standard
